PLC transporter
Two wagons × 1,500 kg; recipe-controlled dipping and draining
CED tank internal2,500 × 1,250 × 1,250 mm
Maximum wagon lifting capacity1,500 kg each
Planned coating capacity1,00,000 m² / month
All specifications and capacity are for the planned plant; they are not claims of operational, commissioned capacity. Actual maximum part size depends on fixture design and anode clearance.
EQUIPMENT PREVIEW
What the planned plant will look like.
These four illustrations are reproduced from SVSC's own brochure. They are artist's impressions of proposed equipment, not photographs of an installed facility.

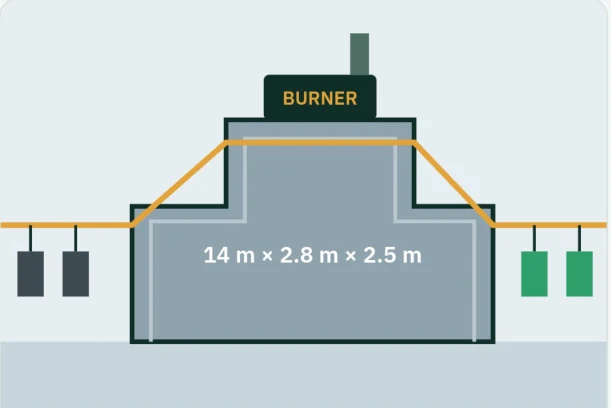

Camel-back oven
14 m × 2.8 m × 2.5 m; Riello system and 70 m conveyor

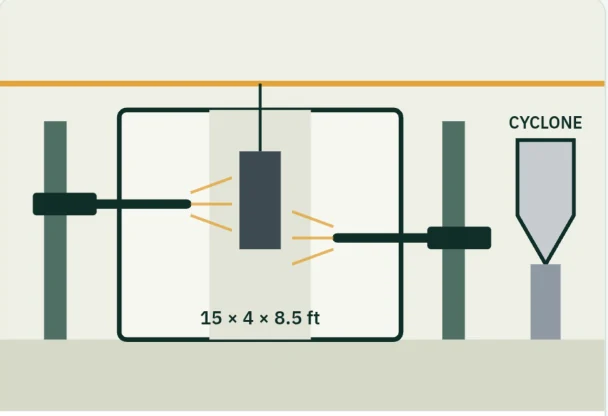

Automated powder booth
Four automatic guns plus two manual guns; powder recovery
In-house laboratory
Salt spray, DFT, adhesion, cure and bath analysis
COMPLETE PLANNED EQUIPMENT SCHEDULE
The numbers behind the line.
| Equipment / system | Brochure specification |
|---|---|
| CED line | 18 tanks; MS with 3 mm FRP lining; three tanks MS + PPH |
| Transporter | PLC-controlled; 2 wagons × 1,500 kg lifting capacity |
| Job handling | 8 job-hanging baskets; 8 base trolleys; trolley track |
| Rectifier & anodes | 250 V / 350 A rectifier; 8 tubular anode cells |
| CED bath cooling | 5 TR air-cooled chiller |
| Circulation & filtration | 8 pumps; 8 bag filters; closed-loop ultrafiltration |
| Degreasing & heating | 2 oil skimmers; 4 heated stages with automatic temperature control |
| Sludge filter press | 24 plates, each 18 × 18 inches |
| Camel-back oven | 14 m L × 2.8 m W × 2.5 m H; Riello FS10 heat exchanger |
| Overhead conveyor | 70 m closed type; 45 kg per hook; 300 mm pitch; automatic lubrication |
| Powder booth | 15 × 4 × 8.5 ft (approx. 4.6 × 1.2 × 2.6 m); SS multi-cyclone recovery; cartridge dust collector |
| Powder guns | 4 automatic + 2 manual (Mitsuba); automatic gun cut-out 1,250 mm |
| Batch oven | 9.5 × 6 × 14 ft (approx. 2.9 × 1.8 × 4.3 m); Riello FS20, for larger parts |
| Heating fuel | LPG gas bank with vaporiser; 7,00,000 kcal/hr |
| Compressed air | 2 × 10 HP compressors; 500 L receivers; air dryer |
| Water & effluent | Demineralised water plant 500 LPH; ETP 5 KLD; 3 HP acid/alkali fume scrubber |
PART FIT & ENGINEERING REVIEW
Send the drawing.
We'll review the jigging.
Minimum clearance, hole geometry, hanging direction and part orientation influence whether a job can be processed effectively.
For an accurate quotation, please send
- Part drawing and overall dimensions
- Material and approximate weight
- Specified coating and performance tests
- Expected monthly volume
- Target launch / dispatch date
